SEM-Scope is the first tool designed specifically for system-level EMI/EMC. It allows engineers to generate and integrate subsystem models into full system simulations, thus enabling scalable, efficient EMC analysis.
The Problem
Even if individual components pass, failures often emerge at the system integration level.
- Multiple subsystems interact
- Harnesses introduce new coupling paths
- OEM-level behavior becomes unpredictable
Traditional tools struggle to model this complexity efficiently.
SEM-Scope is the first tool designed specifically for system-level EMI/EMC.
SEM-Scope revolutionizes how you address integration-level challenges by generating sub-system models and embedding them into system-level simulations.
This makes setting up, solving, and visualizing complex systems effortless. From streamlining design workflows to delivering precise insights, SEM-Scope empowers you to predict and design for system-level success.
Key Features
Sub-system Model Generation
SEM-Scope provides the capability of generating Electronic Board Emission Models (EBEM) that do not disclose the internal details
but is sufficient for system-level EMI/EMC analysis
Advanced Visualization
Generate s-parameter and Eh/Ev field plots for comprehensive insights

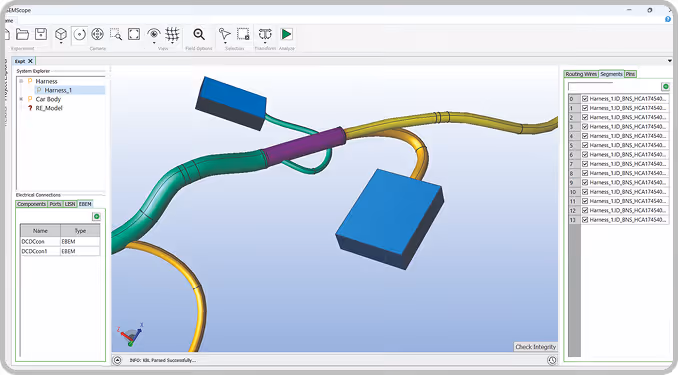

Harness Integration
SEM-Scope provides the capability of generating Electronic Board Emission Models (EBEM) that do not disclose the internal details
but is sufficient for system-level EMI/EMC analysis
Component Setup
Add pins, ports, LISN, EBEM models, and other components easily
3D Geometry Support

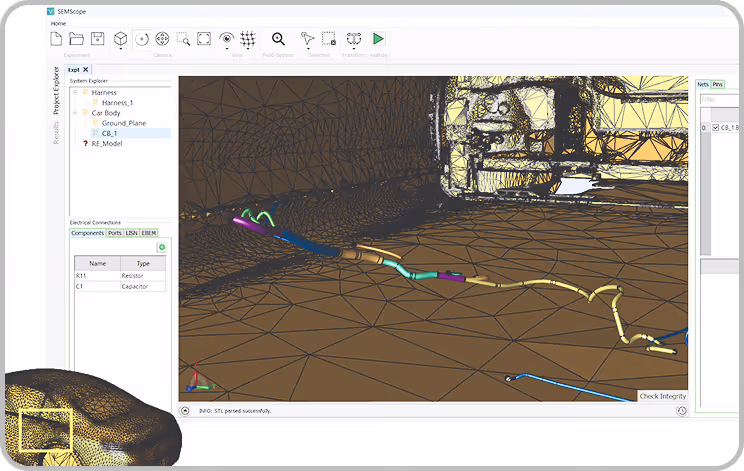

Import SAT or STL files for detailed system visualization
Dual Analysis Modes
Switch between extraction and driven mode analysis with adaptive mesh refinement
Why SEM-Scope?
Simplified Setup
Streamline harness and geometry imports with intuitive tools
Comprehensive Analysis
Visualize system-level EMI/EMC behavior with precision
Enhanced Collaboration
Generate sub-system models without disclosing the internal details and share across teams/organisations for system-level results
Efficiency Gain
Hybrid 2D/3D electromagnetic simulation setup for optimal efficiency
SEM-Scope Modeler
SimYog’s SEM-Scope Modeler enables suppliers to generate standardized subsystem models for use in system-level EMC simulations.
A seamless workflow
This allows:
System-level simulation without exposing proprietary designs
Consistent modeling across suppliers
Accurate prediction of integration-level EMC behavior
